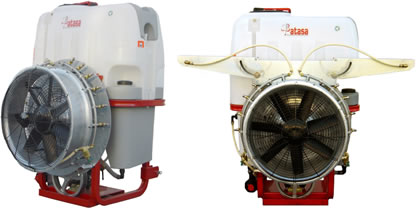

3 POINT LINKAGE MISTBLOWERS



TECHNICAL CHARACTERISTICS

DEPOSIT: Made of polyethylene reinforced with UV protection. Main tank capacity 200, 300, 400, 500, 600, 800 and 1000 litres. Independent deposit wash circuit and wash hands. Level indicator visible from the exterior. Easy access filling neck with filter and closure lid of ¼ screw.

CHASSIS: Made of steel and cold curved with anti-oxide treatment. Footboard to access filling neck in 800 and 1000 litre models.

FAN GROUP: Covered in heated zinced steel. Diameters of 500, 600, 700 and 800 mm for the 1000 litre model. Blades made of reinforced nylon with adjustable fibreglass of 20 to 40 degrees. Nozzle holder arches in stainless steel. Transmission through neutral and first gear. Adjustable air flow. Protection mesh. Adjustable brass Jets.

"COMET" Pump: :Diaphragm models ASP-51, 71 and 101. Piston models YA-65 and YA-90.

STIRRING: Hydraulic produced through pressure injector and high performance return.

COMET MODEL CONTROL GROUP: Accessible from the tractor with general opening and closure or by sectors. Pressure monometer incorporated.

CHARGER: Anti-contamination type.

DRIVE SHAFT: Reinforced with safety protections.

FILTER: : High density filter set up in aspiration and includes a safety valve that allows for inspection even if the main deposit is full. Brass filters are also incorporated in the entrance of each jet arch.

TOTAL ABSORBED POWER: Between 12 and 15 HP.
