ATOMISER TYPE TRAILED SPRAYERS
TECHNICAL CHARACTERISTICS
DEPOSIT Made of high density reinforced polyethylene and available in capacities of 1000, 1500 and 2000 litres. It includes a clean water deposit, a deposit to the circuit integrated below the main container and a filter in the filling neck and hermetic closing lid.
CHASSIS: Fabricado en acero y curvado en frío. Perfil en “U” incluyendo refuerzos, parachoques trasero extraíble, faldón protector, estribo de acceso a boca de lenado, lanza de tiro extraíble todo ello tratado con pintura antioxido.
FAN: :Our three fan models have stainless steel covering and double noble holder made of brass with anti-drip system. Transmission by internal drive shafts:

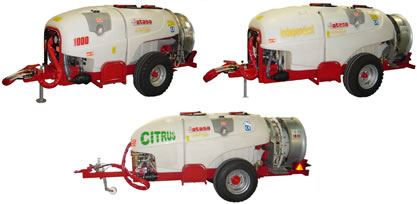

ABORD MODEL: 810 mm diameter with 20 blades made of high resistance polypropylene. 14 nozzle holders. Two stroke multiplier box and neutral.
INDEPENDENT MODEL: 820 or 920 mm diameter with 10 blade adjustable propeller made of aluminium. Contra propeller of 10 fixed blades that assures perfect air distribution. 14 nozzle holders. Two stroke multiplier box and neutral. Centrifugal clutch
CITRUS MODEL: 820 or 920 mm diameter with 10 blade adjustable propeller made of aluminium. Contra propeller as in INDEPENDENT Model. 26 nozzle holders distributed in three exits. Two strike multiplier box and neutral. Centrifugal clutch.
COMET pump in diaphragm or piston.
STRING hydraulic through two high performance injectors.
CONTROLS Manual GRH control (total opening and closure or by sectors), in models ABORD and INDEPENDENT. Electrical control (total opening and closure or by sectors),in the CITRUS model.
