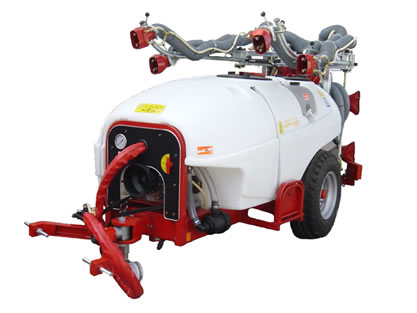

TRAILER ATOMISER
TRAILER ATOMISER
TECHNICAL CHARACTERISTICS:
DEPOSIT made of fibreglass or polyethylene of high density in capacities of 1000, 1500 and 2000 litres. Equipped with an auxiliary deposit of clean water integrated below the main tank and a hand wash deposit fulfilling European norms. Filling neck of wide diameters and hermetic closing lid.
CHASSIS. Reinforced steel structure in U shape. Rear bumpers and lateral step to reach filling neck. Extendable nozzle and mudguards. Folding light kit. Service brake in 1.500 and 2.000 litre models.
TURBINE. High performance turbine for tractors of 50 and 80 HP. Centrifugal clutch and two stroke multiplier box and neutral. Protective skirting against dust, leaves etc. 8 adjustable hands equipped with anti-drip metallic jets. 2 or 4 application sides depending on the model. The application model of 4 sides incorporates a hydraulic system to open and close arms.
COMET diaphragm Pump. Flow 100 l./min. and pressure 50 bars
STIRRING. Two "TURBOMAX" high pressure hydraulic injectors.
PRESSURE CONTROL electric in the cabin with general opening and closing or by sectors.
TYRES Agricultural.
FILTERS.Our sprayers have three levels of filtration. In the filling neck. In the aspiration filter in diaphragm and high density sieves, with a safety valve that allows us to inspect and clean even if the deposit is full. And two filters in line just before the nozzle exits to ensure minimum maintenance.
MAXIMUM AIR FLOW 17 200 to 26 000 m3/h.
MAXIMUM AIR SPEED 53 TO 80 m/s.
ABSORBED POWER 38 to 75 HP.
Note: these values correspond to turbines of 400 and 480 mm.
