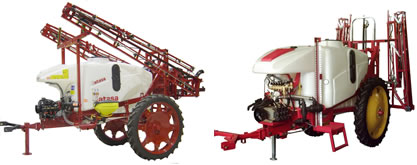

TRAILED AGRICULTURAL SPRAYERS FOR VEGETABLE GROWING

TECHNICAL CHARACTERISTICS

DEPOSIT: : Made of reinforced polyethylene with UV protection. Capacity of the main tank 2350 or 3000 L (according to EU norms), with breakwater system. Independent deposits, circuit wash and hand wash. Incorporator for liquid as well as powder products and container wash. Accessory compartment.

CHASSIS: Steel painted with double layer of epoxy powder after sanding. Position lights for road use.

Application booms: hydraulic, 12 to18 meters with independent opening by stages. Safety springs on the extremes. Elevation through vertical pistons. Fitted tilting board. Bar block for road use.

"Comet" PUMP of the BP series specific to every model..

NOZZLE HOLDERS  made of plastic. Triple body with anti-drip diaphragm system, assembled on a stainless steel tube.

Electric volumetric Control (DPM) for the hydraulic system with the possibility of incorporating an electric or computer control (DPA).

JOYSTICK to control the dynamic electro-oleo management system of the movement of the Application booms.

STIRRING: through high pressure hydraulic injectors.

FILTERS: high capacity in aspiration with safety valve that allows us to clean it even if the deposit is full. Filters in line with the control exit according to sector applications.

TYRES  230/95 R 48.

AXLE with brake and width regulation from 150 to 180 mm.

ROTARY HOOK

Drive shaft of 1000 mm 73 KW.
