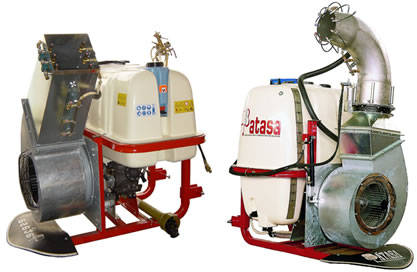

TRAILED MISTBLOWERS

TECHNICAL CHARACTERISTICS

CHASSIS:Chassis (suspended model) in square tube and cold curved, very robust, treated with anti-oxide and epoxy paint. Chassis (trailer model) in "U" structure reinforced by rear mobile bumpers, step and extractable steering wheel (various models available) and epoxy painted.

DEPOSIT:Fibreglass container (polyester) of great resistance with extractable clean water deposit, visible gradual scale of the exterior, large filling neck with lid and sieve filter for hermetic closing.

PUMP: COMET diaphragm pump of  70 to 103 L. min. (Maximum pressure 50 bars to 550 rounds/minute) coupled directly to the multiplier box through drive shaft transmission.

TURBINE: Fan groups with centrifugal turbines (400 to 480 mm) and multiplier box bathed in oil, very robust with two strokes and neutral. Centrifugal clutch and interior and exterior protection mesh. Casing made of galvanised steel in hot immersion.

AIR EXIT: Exit canon curved (or straight), in stainless steel adjustable in height and can be moved up or down by the hydraulic system. Rotating mouth of 180º by toothed Wheel and hydraulic engine fitted with Albuz ATR nozzles. Bronze collector and remote control in the cabin.

STIRRING: Stirring system using hydro-injection that guarantees efficient stirring at low and high pressures

FILTER: Aspiration filter of large density with closing valve that allows it to be cleaned when the container is full.

ACCESSORIES: Ecological charger that ensure good, fast and clean filling, without contamination the area where the water is pumped. Transmission through reinforced drive shaft with protection.

Required power 38 to 75 HP.
