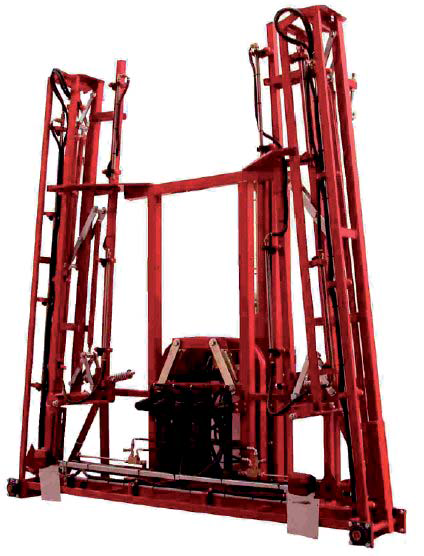

Booms Basic
Booms BASIC
| Standard equipment | 12 m | 14 m | 15 m | 16 m | 18 m |
|---|---|---|---|---|---|
| Frame | Structural pipe with reinforcements | Structural pipe with reinforcements | Structural pipe with reinforcements | Structural pipe with reinforcements | Structural pipe with reinforcements |
| Cover | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting |
| Sections | 5 | 5 | 5 | 5 | 5 |
| Gets | Tri-get plástico | Tri-get plástico | Tri-get plástico | Tri-get plástico | Tri-get plástico |
| 1er Articulated section reinforced with bearings | Yes | Yes | Yes | Yes | Yes |
| Motion control | 2 Hydraulic piston | 2 Hydraulic piston | 2 Hydraulic piston | 2 Hydraulic piston | 2 Hydraulic piston |
| 12 m | 14 m | 15 m | 16 m | 18 m | |
|---|---|---|---|---|---|
| Length (mm) | 530 | 530 | 570 | 600 | 560 |
| Width (mm) | 2470 | 2080 | 2370 | 2440 | 2470 |
| Height (mm) | 2670 | 3130 | 2570 | 2760 | 3000 |
| Weight (kg) | 240 kg | 250 kg | 300 kg | 300 kg | 500 kg |
| Description |
|---|
| Hydraulic elevator 18 m up to 500 mm Ares model |
| Hydraulic elevator + pneumatic suspension Compac Plus model |
| Anti-gap kit |
| Galvanized frame |
| Gets a 375 mm |
| Pneumatic suspension |
| Foam marker kit |
| Triangular road light kit |
| Road light with V-20 plates kit & Support of rotary light |
| Road light with V-20 plates kit |
| Joystick 2 Buttons 3 functions |
Images
Click on the images to expand them.
