Pneumatic sprayer

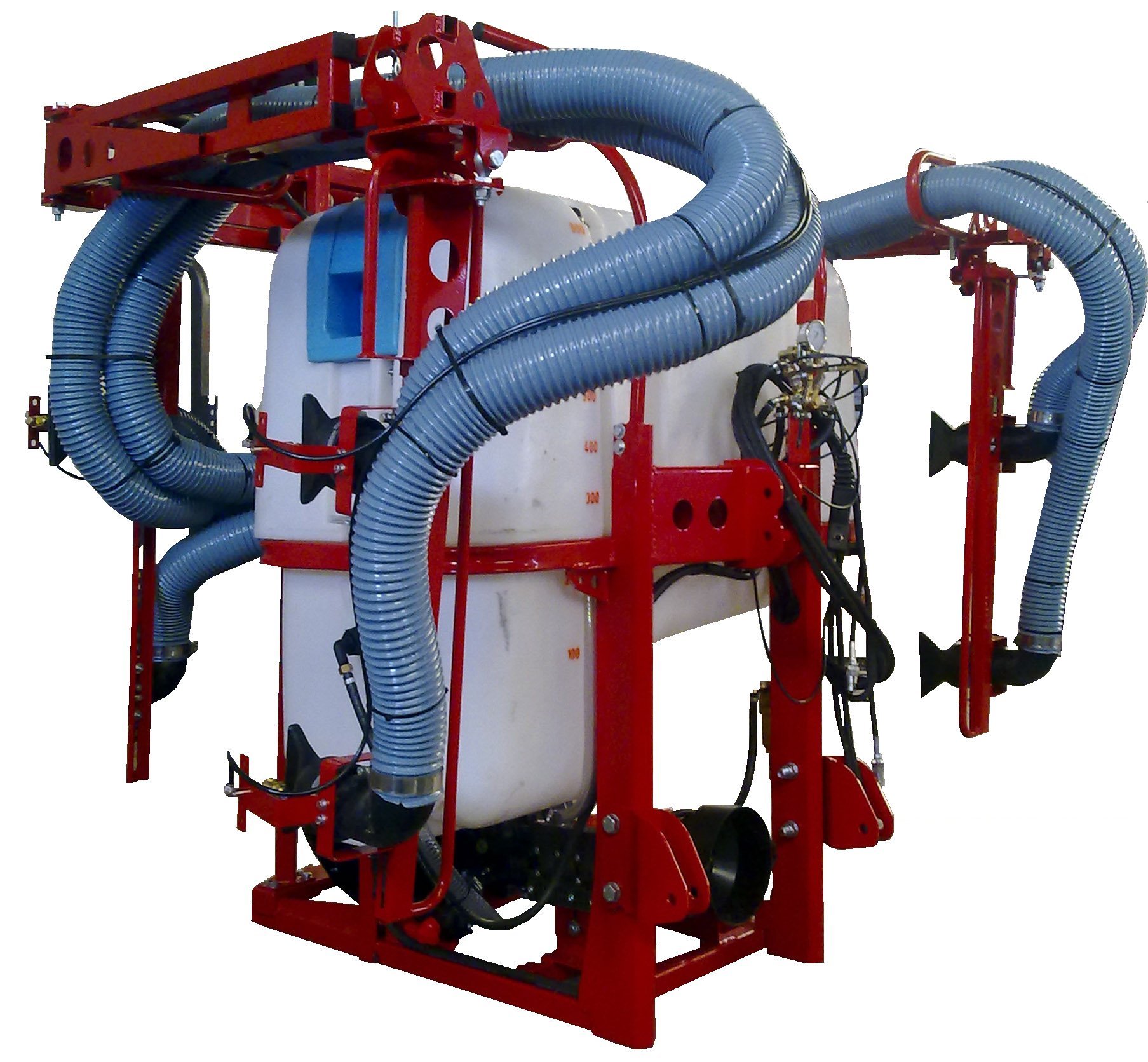

Pneumatic sprayer EUROVID
| Standard equipment | 800 L |
|---|---|
| Frame | Reinforced steel |
| Cover | Anticorrosion painting |
| Tank | Polyethylene |
| Hand whasing tank | Yes |
| Rinsing tank | Yes |
| Pump | Diaphragm/piston |
| Control | Manual |
| Air diffusers | Polyethylene |
| Planting pattern | 2,5 a 3,5 m |
| Planting pattern regulator | Manual |
| Speed of air diffusers | 80 m/s |
| Anti-collision with return in end of booms | Yes |
| Tank opening filter | Yes |
| Suction filter with safety valve | Yes |
| Fan | 500 mm |
| Fan | 1 speed and neutral |
| Nozzles | 8 yellow + 8 blue |
| Pto Shaft | Yes |
| Anti-pollution hydro-injector | Yes |
| 800 L | |
|---|---|
| Length (mm) | 1650 |
| Width (mm) | 2200 |
| Height (mm) | 2000 |
| Weight (kg) | 750 kg |
| Description |
|---|
| Electric DPM regulator |
| Product mix tank |
Images
Click on the images to expand them.
