Linkage Sprayers

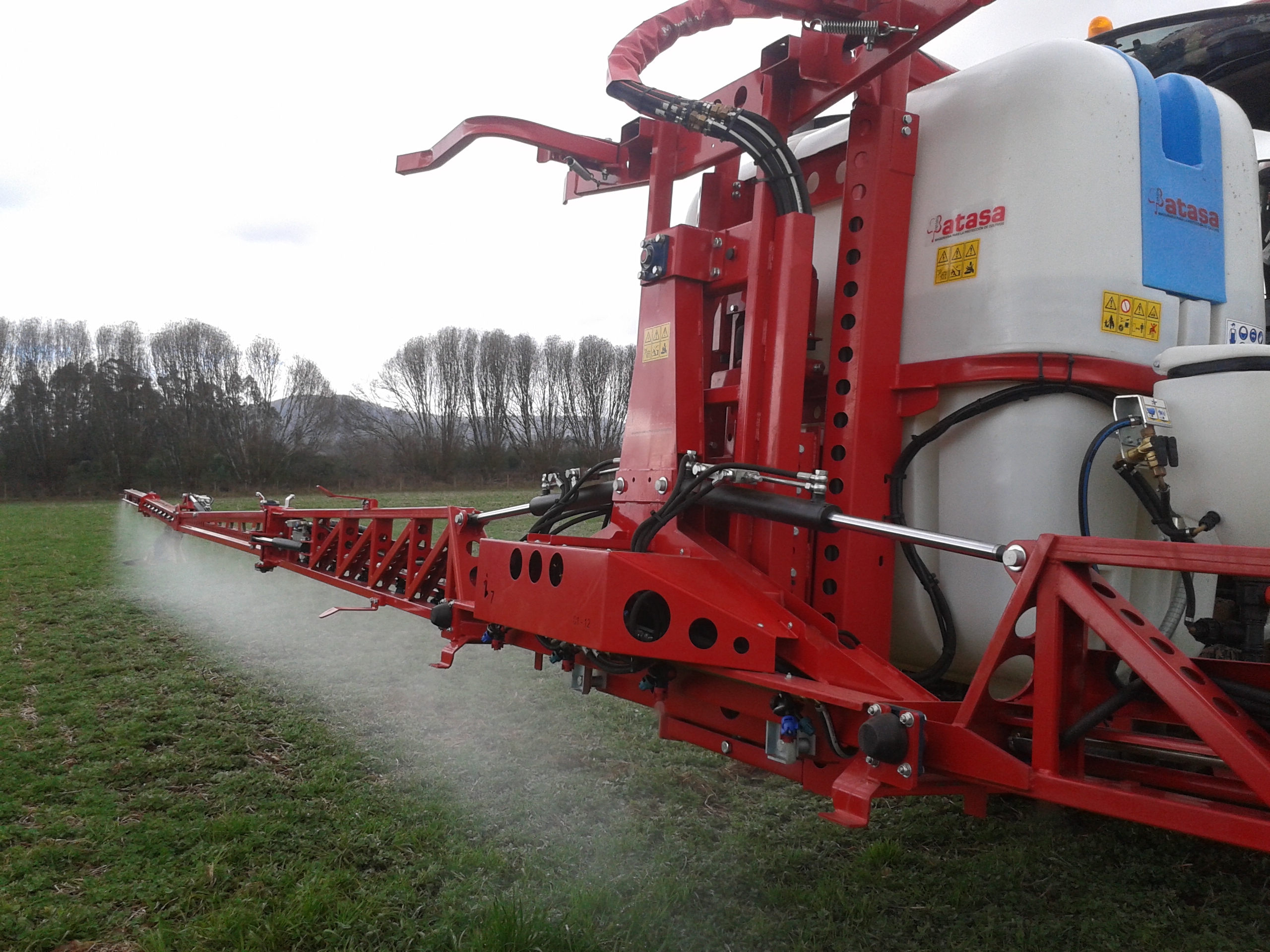

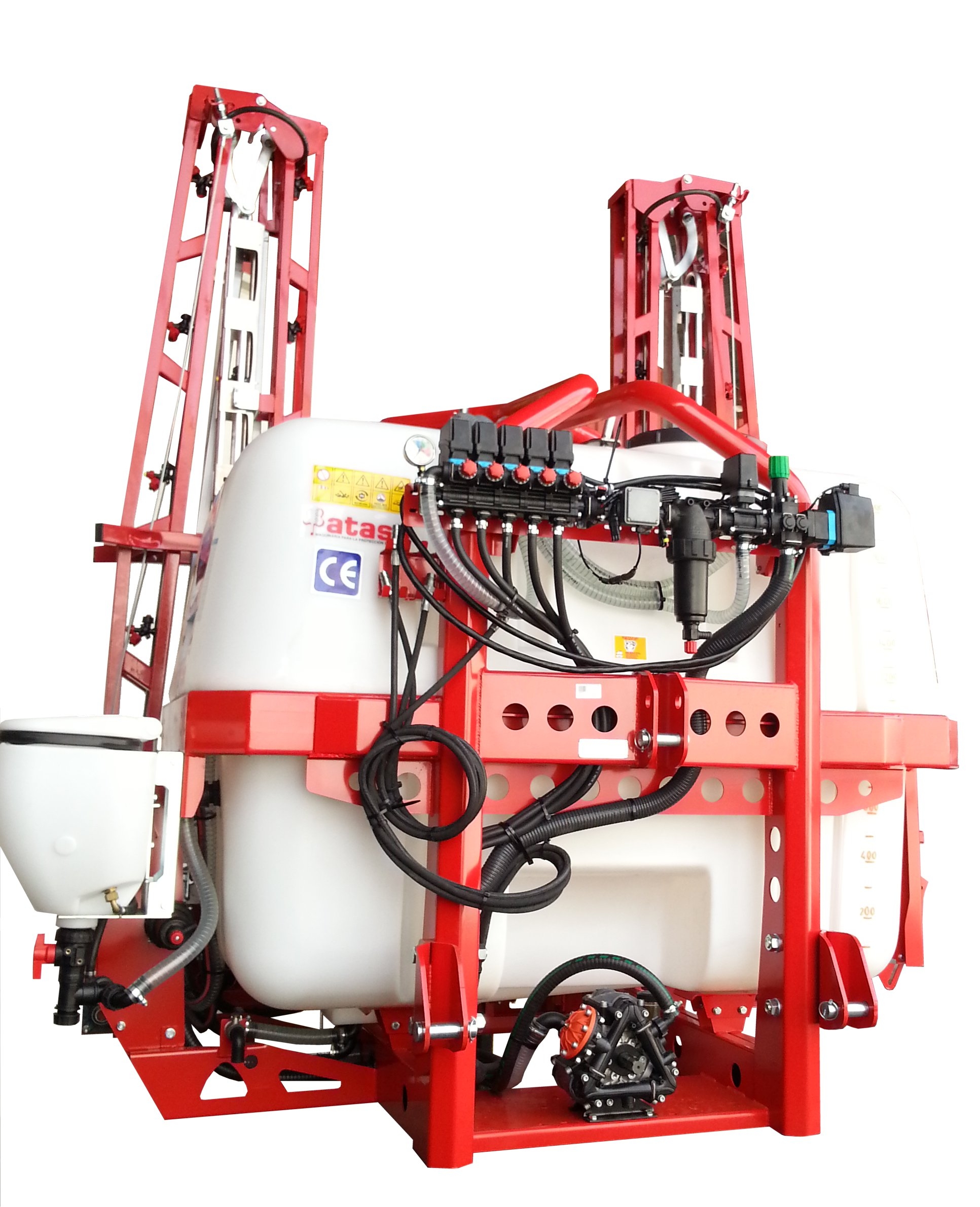

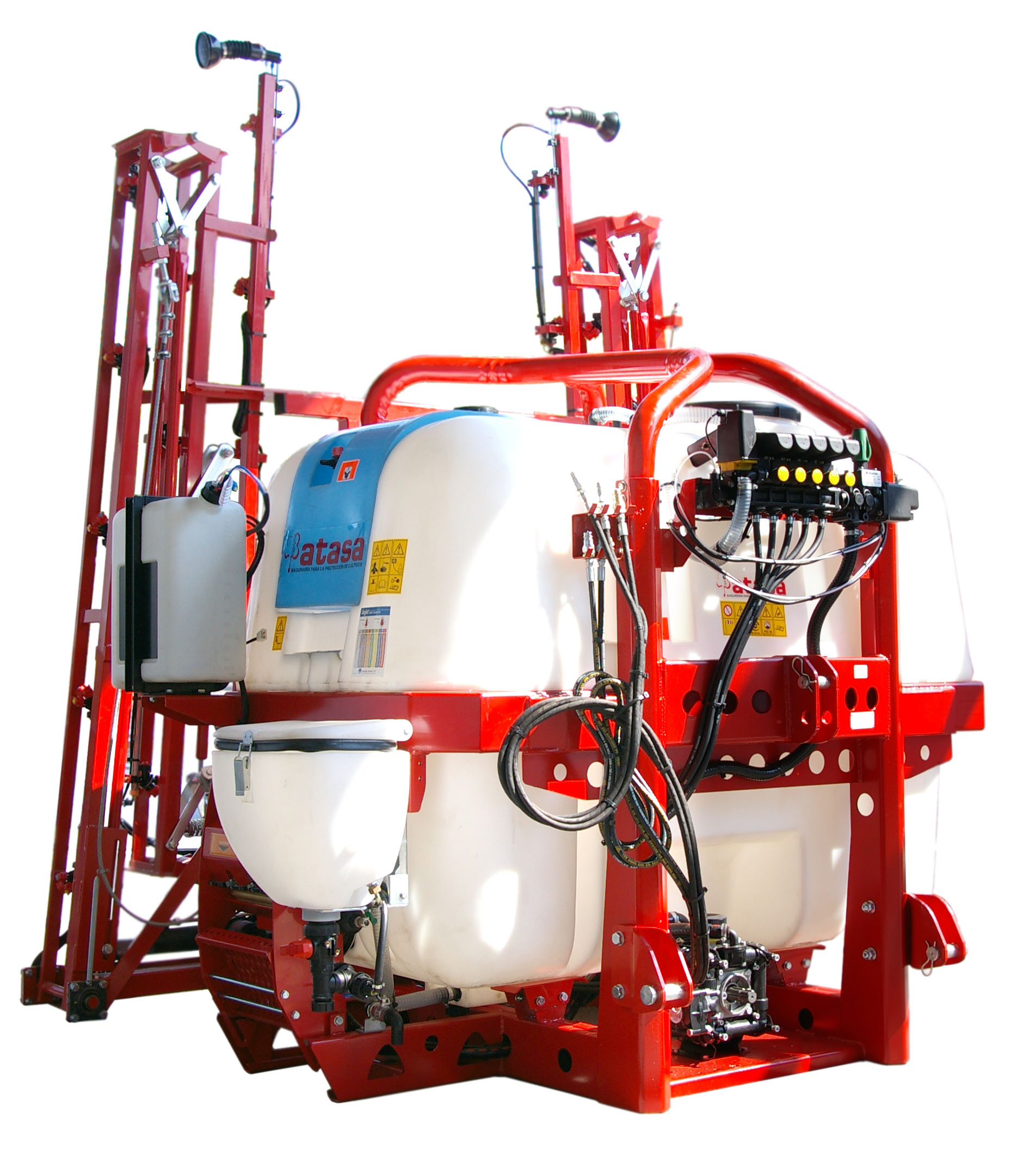

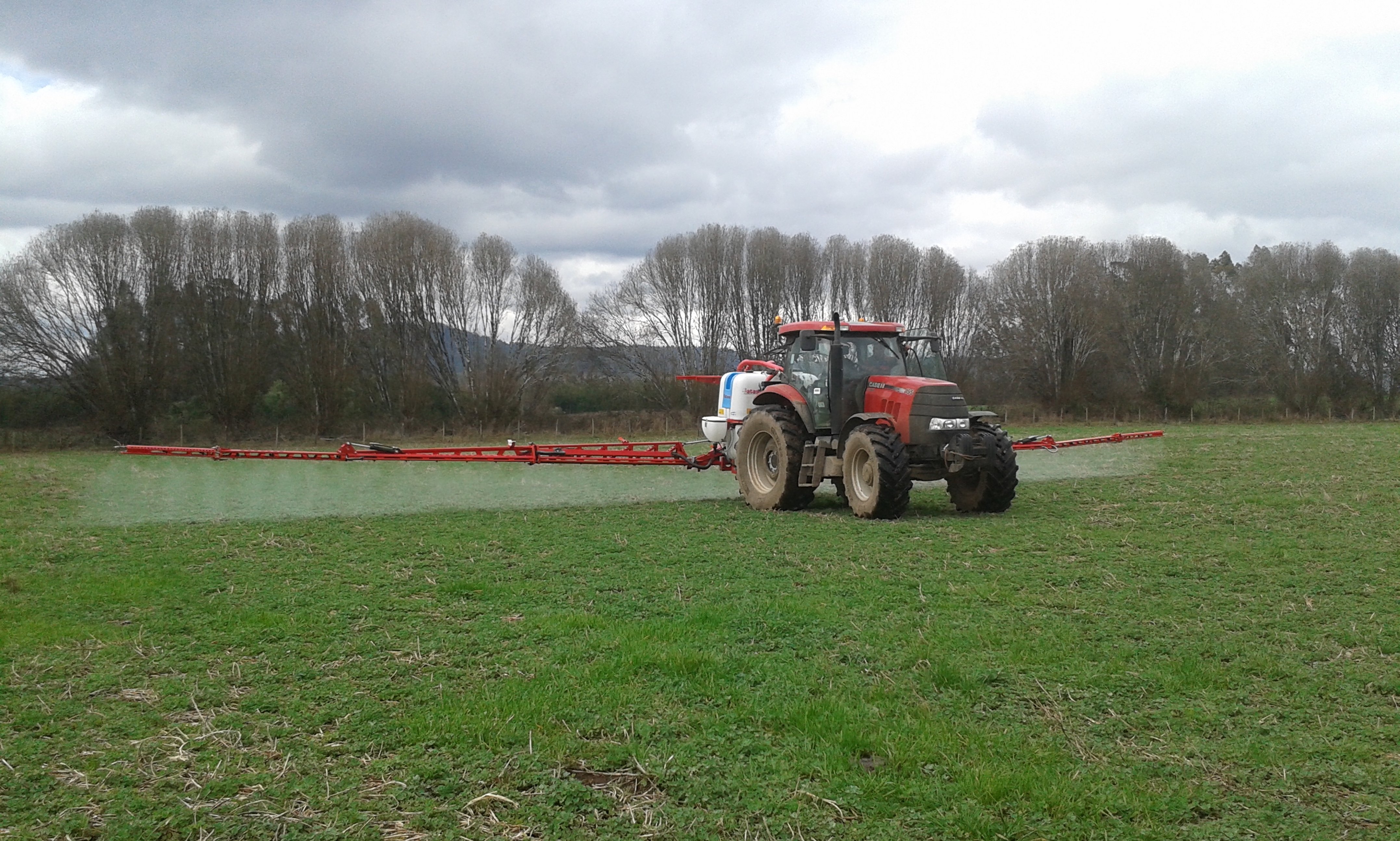

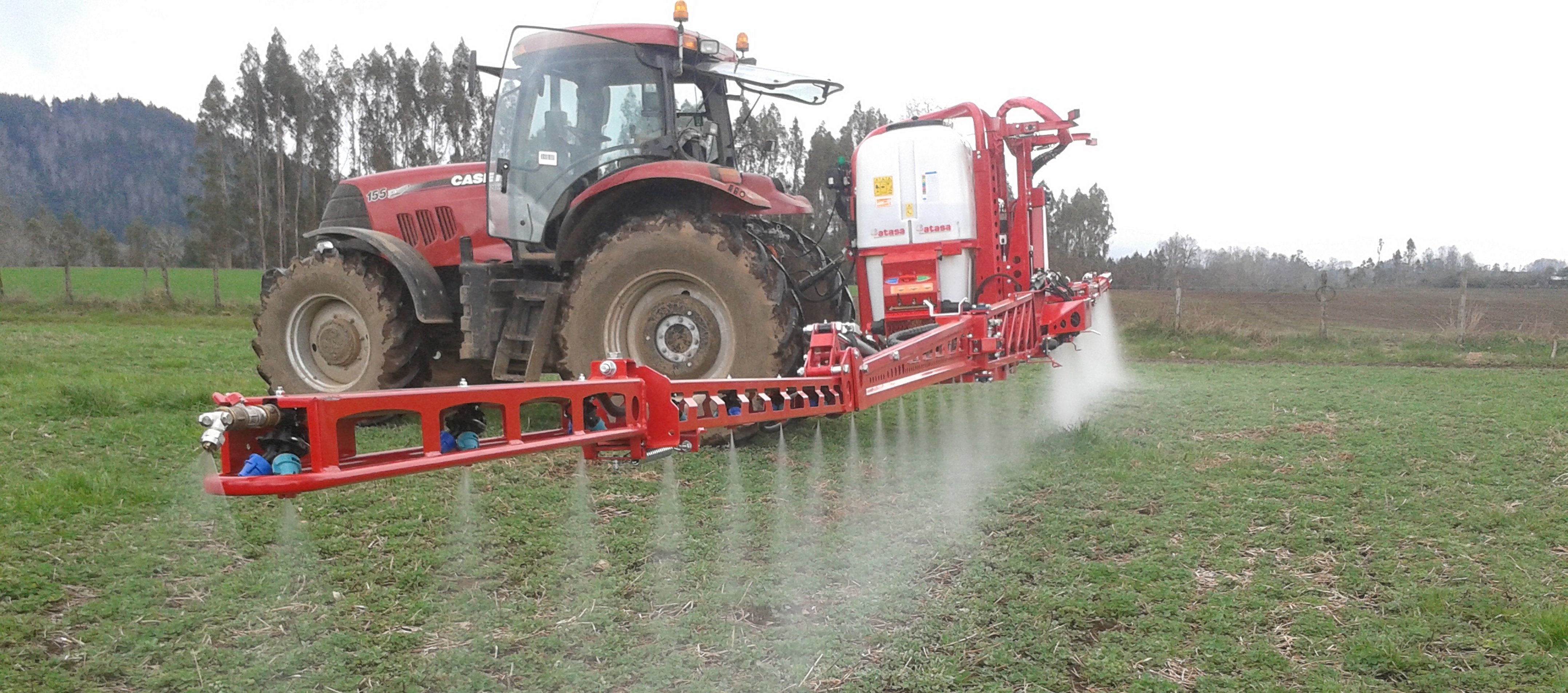

Linkage Sprayer COMPAC PLUS
| Standard equipment | 1000 L | 1200 L | 1500 L | 2000 L |
|---|---|---|---|---|
| Fame | Steel with reinforcement bars | Steel with reinforcement bars | Steel with reinforcement bars | Steel with reinforcement bars |
| Cover | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting |
| Tank | Polyethylene | Polyethylene | Polyethylene | Polyethylene |
| Hand whasing tank | Yes | Yes | Yes | Yes |
| Rinsing tank | Yes | Yes | Yes | Yes |
| Pump (low pressure) | Diaphragm | Diaphragm | Diaphragm | Diaphragm |
| Level Gauge | Yes | Yes | Yes | Yes |
| Tank opening filter | Yes | Yes | Yes | Yes |
| Suction filter with safety value | Yes | Yes | Yes | Yes |
| Hydraulic agitator | Yes | Yes | Yes | Yes |
| Manual regulator 5 sections | Volumetric | Volumetric | Volumetric | Volumetric |
| Control panel | Integrated | Integrated | Integrated | Integrated |
| Trunks of hooking | 4 positions | 4 positions | 4 positions | 4 positions |
| Product mix tank | 40 l | 40 l | 40 l | 40 l |
| PTO shaft | Yes | Yes | Yes | Yes |
| Anti-pollution hydro-injector | Yes | Yes | Yes | Yes |
| 1000 L | 1200 L | 1500 L | 2000 L | |
|---|---|---|---|---|
| Length (mm) | 1220 | 1220 | 1215 | 1510 |
| Width (mm) | 1675 | 1675 | 1950 | 2050 |
| Height (mm) | 1700 | 1878 | 1898 | 1948 |
| Weight (kg) | 350 kg | 350 kg | 375 kg | 650 kg |
| Description |
|---|
| Elecrtric DPM regulator 5 sections Kit |
| Computer Bravo 180S 5 sections Kit |
| Computer Bravo 180S 7 sections Kit |
| Computer Bravo 400S 5 sections Kit |
| Computer Bravo 400S 7 sections Kit |
| Foam marker Kit |
| GPS guide system for Bravo 180 Kit |
