Booms

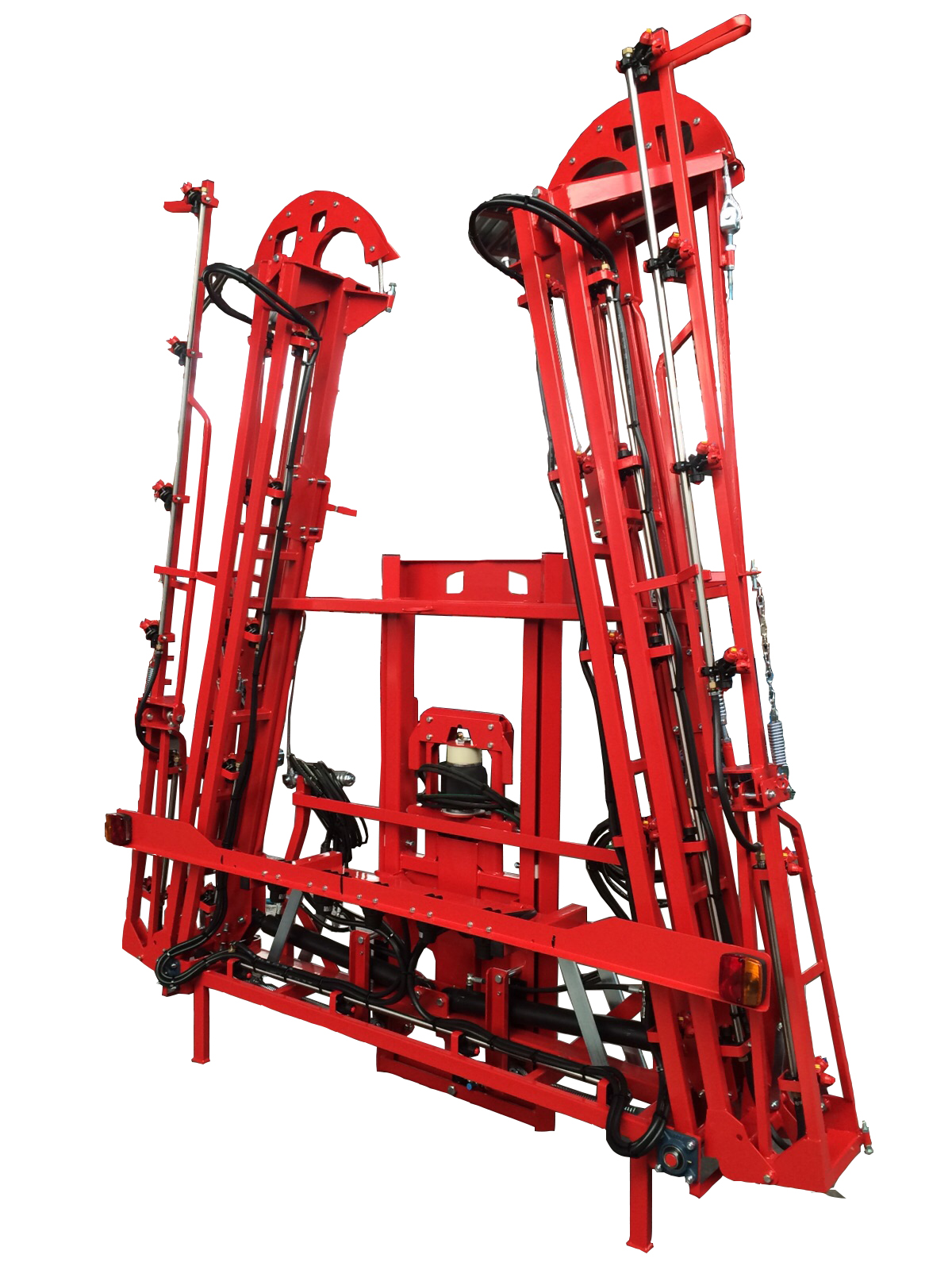

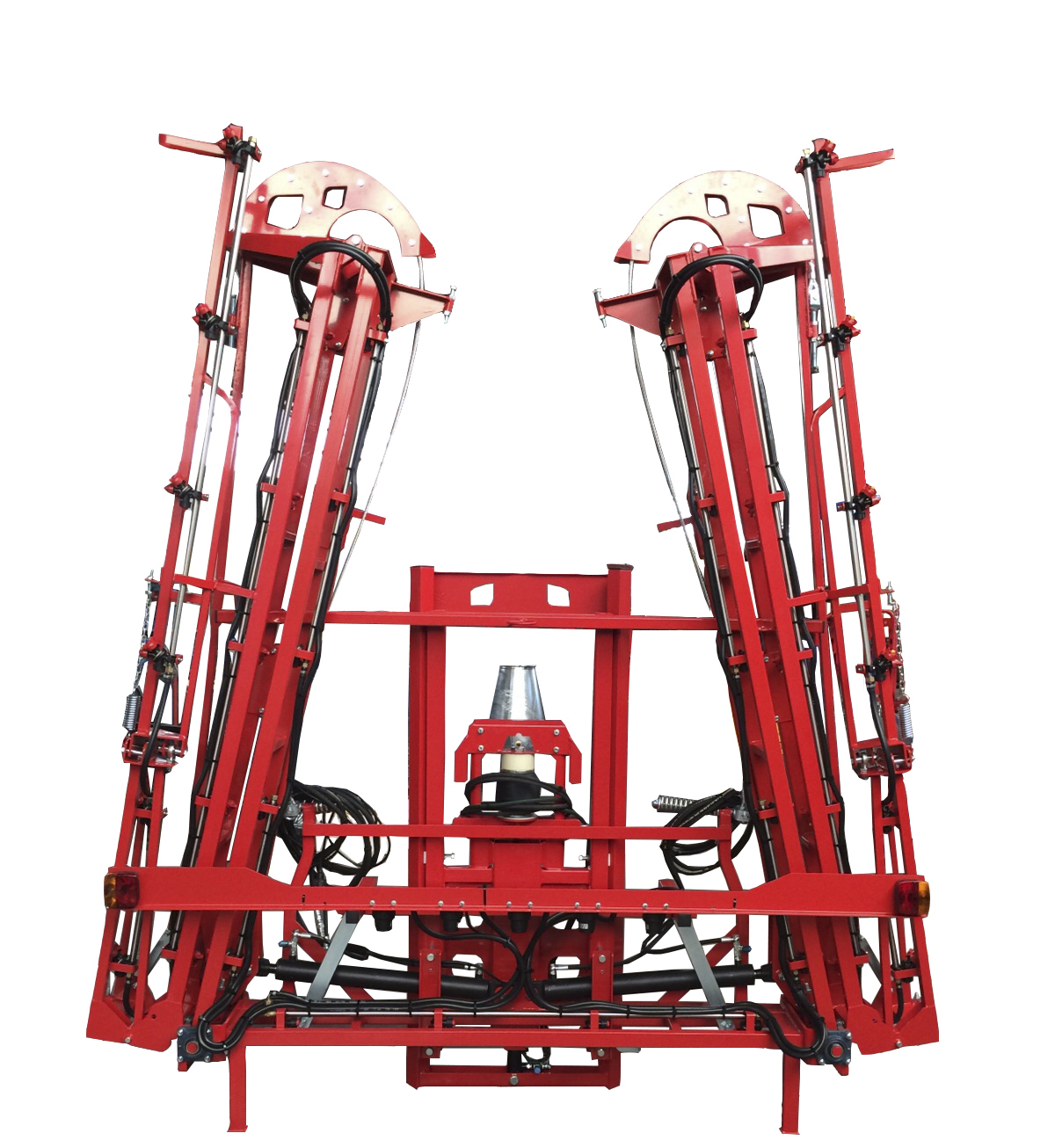

Booms SELENE
| Standard equipment | 15 m | 16 m | 18 m | |
|---|---|---|---|---|
| Frame | Structural pipe with reinforcements | Structural pipe with reinforcements | Structural pipe with reinforcements | |
| Cover | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting | |
| Sections | 5-7 | 5-7 | 5-7 | |
| Gets | Tri-get | Tri-get | Tri-get | |
| 1er Articulated section reinforced with bearings | Yes | Yes | Yes | |
| Motion control | 2 hydraulic pistons | 2 hydraulic pistons | 2 hydraulic pistons | |
| Tubes | Stainless steel | Stainless steel | Stainless steel | |
| Automatic return in end of booms | Yes | Yes | Yes | |
| Road light kit | Yes | Yes | Yes | |
| Automatic blocking of folded | Yes | Yes | Yes |
| 16 without elevator | 16 with elevator | 18 without elevator | 18 with elevator | |
|---|---|---|---|---|
| Length (mm) | 540 | 540 | 540 | 540 |
| Widht (mm) | 2720 | 2720 | 2720 | 2720 |
| Height (mm) | 3000 | 3000 | 3000 | 3000 |
| Weight (kg) | 420 kg | 525 kg | 440 kg | 545 kg |
| Description |
|---|
| Foam marker Kit |
Images
Click on the images to expand them.
